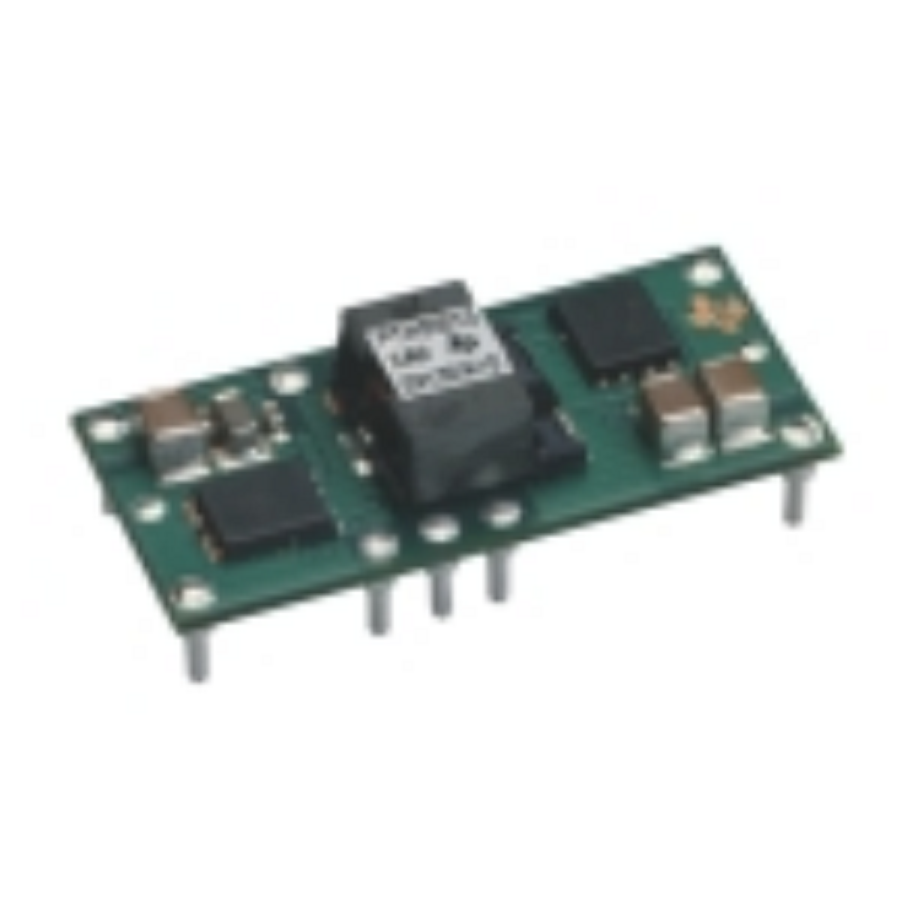

PTH05010WAH
Manufacturer:
Texas Instruments
Mfr.Part #:
PTH05010WAH
Datasheet:
Description:
DC to DC Converters DIP-10 Through Hole Min Input Voltage:4.5 V Max Input Voltage:5.5 V 95 %
| Parameter | Value |
|---|---|
| Length | 34.8 mm |
| Width | 15.75 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 9 mm |
| Packaging | Tray |
| Depth | 15.75 mm |
| Thickness | 8.75 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Min Input Voltage | 4.5 V |
| Output Current | 15 A |
| Output Voltage | 3.6 V |
| Operating Supply Voltage | 5 V |
| Max Power Dissipation | 54 W |
| Max Output Current | 15 A |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Output Power | 54 W |
| Current - Output 1 | 15 A |
| Efficiency | 95 % |
| Voltage - Output 1 | 3.6 V |
| Min Output Voltage | 800 mV |
| Max Input Voltage (DC) | 5.5 V |
| Max Output Voltage | 3.6 V |
| Max Output Power | 54 W |
| Min Input Voltage (DC) | 4.5 V |
| Isolation | Non-Isolated |
| Schedule B | 8504408500 |
| Output Current-Channel 1 | 15 A |
| Output Voltage-Channel 1 | 0.8 V to 3.6 V |
Stock: 48
Distributors
pcbx
pcbxUnit Price$17.77911
Ext.Price$17.77911
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $17.77911 | $17.77911 |
| 10 | $16.84040 | $168.40400 |
| 25 | $16.42747 | $410.68675 |
| 50 | $16.15817 | $807.90850 |
| 100 | $15.92648 | $1592.64800 |
| 300 | $15.44516 | $4633.54800 |
